Turnkey PCB Assembly PCB Industry Solutions Electronic Circuit Service Provider
Turnkey service:
1. Quickturn PCB Prototype
2. Full Feature PCB Manufacturing
3. PCB Soldering Service
4. Through Hole PCB Assembly
5. Double Sided PCB Assembly
6. Electronics Manufacturing
7. PCB Layout
8. 3D printing
9. Full testing: Flying Probe Test, X-ray Inspection, AOI Test, Functional test
10. Components sourcing
11. PCB Reverse Engineering
12. HDI PCB Board
13. Box Build Assembly

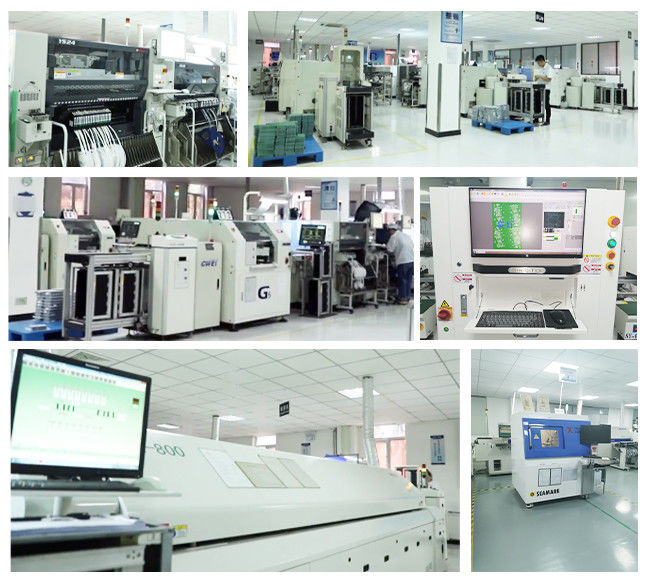

PCB Manufacture Capacity
| One-stop PCBA | PCB design+PCB+components sourcing+assembly+test+package |
| Assembly details | SMT and Thru-hole |
| Lead Time | Prototype: 7-15 work days. Batch order 20~25 work days usually |
| Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, Functional test |
| PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA |
| Leadless Chip Carriers/CSP |
| Double-sided SMT Assembly |
| Fine Pitch to 0.8mils |
| BGA Repair and Reball |
| Part Removal and Replacement |
| Component package | Cut Tape,Tube,Reels,Loose Parts |

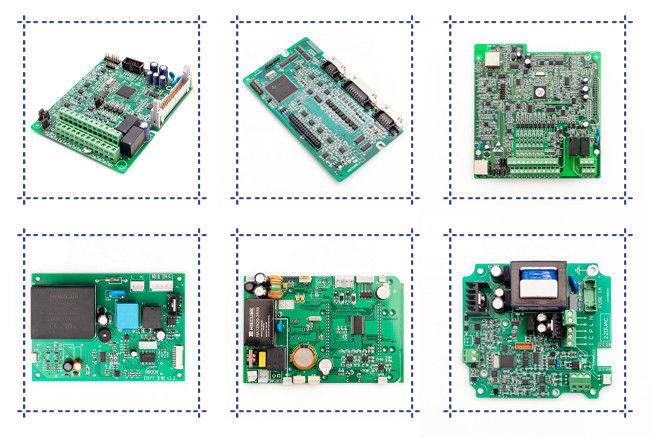

PCB assembly
process | Drilling---Exposure---Plating---Etaching & Stripping---Punching---Electrical Testing---SMT---Wave Soldering---AOI test---Assembling---ICT---Function Testing---Temperature & Humidity&Aging ect. Testing |
Who can Benefit Most from Our Turnkey PCB Assembly Services?
Now that full turnkey PCB assembly allows PCB designers to make better use of their time to focus more on PCB design, it works perfectly on companies striving for frequent upgrading and refreshing of products. They need to dig into deeper market by providing multiple creative electronic products and they strongly call for a steady and smooth electronic assembly process.
Turnkey printed circuit board assembly is also an ideal electronic assembly solution for small businesses or startup companies that want to bring smaller quantities of assembled PCBs to market without having to invest in or carry an extensive inventory. It also offers a more cost-effective, efficient means of assembling and testing PCB prototypes for new products. In addition, quick-turn PCB assembly service makes sense for any company that needs to receive their circuit boards with the shortest possible lead time.
As an one of few quality-focused PCB manufacturers that include electronic assembly services, YDY has more than 10 years of experience in providing fast, reliable turnkey PCB assembly services for more than 10,000 companies from over 70 countries around the world..
FAQ:
1, Do you offer quick turn PCB Assembly ?
Yes, we offer 24 hours quick turn PCB Assembled Solution without sacrifice the quality of the PCB Board.
2, Do you offer X-Ray capability ?
Yes, we inspect the boards using X-ray and therefore offer total reliability.
3, Do you offer conformal coating service ?
Yes, conformal coating is a part of our value-added services.
4, Do you offer testing service ?
Yes, we offer robust functional testing that adds to the product reliability.
5, Do you offer IPC 610 or J-STD Quality inspections ?
Absolutely, we offer these inspections as per client requirements.
6, What is the PCB Assembly cost ?
The cost is based on a number of factors including the types of PCB parts, order quantity and more. Once you reach out to us with your bespoke requirements, we will revert with a custom quote.
7, What is your standard turnatound time for PCB Assembly ?
Our standard turnaround time for PCB Assembly is 3 weeks.
